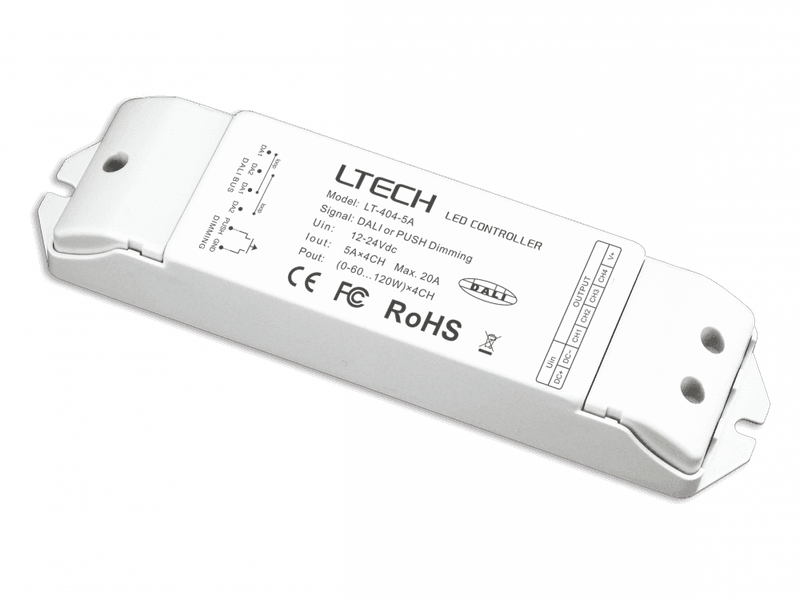

4 kanals DALI dimmer for LED strips 12-24 volt. Kan også brukes som push-dim dimmer.
Dimming interface:
PWM digital dimming, standard DALI logarithmic dimming curve.
Dimming range: 0~100%, LED start at 0.1% possible.
4CH isolated control output, Max. current output: 20A.
Full protective plastic housing.
DALI bus standard: IEC62386.
Suitable for indoor environments
Main Characteristics
Dimming Interface: DALI, Push Dim
Input Voltage: 12~24Vdc
Output Voltage: 12~24Vdc
Dimming Range: 0~100%
Product Size: L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight(G.W.): 135g
Working Temperature: -30°C~55°C
Output: 5A×4CH Max. 20A
